Dual 20MP CMOS sensors

Three multi-view angles:

- 360° Spherical / VR Mode

- 197° 4K Ultra wide mode

- 235° Dome mode

FACEBOOK™ and YOUTUBE™ 360° Photos & Videos

Supports Micro SD Card Up to 256GB (Class 10 or Higher Required)



Technical data



Lens A

Image Sensor A

Effective image sensor pixels: 20.68 Megapixels

Total image sensor pixels: 21.14 Megapixels [1/2.3” BSI CMOS]



Focal length: 1.633 mm

F number: F2.4

Lens construction: 7 groups 8 elements

Focus: Fix focus

Field of view: Max. 197 Degree [For front mode (16:9)]; Max. 155 Degree [For VR mode (2:1)]

Focusing range: 30 cm — ∞



Lens B

Image sensor B

Effective image sensor pixels: 20.68 Megapixels

Total image sensor pixels: 21.14 Megapixels [1/2.3” BSI CMOS]



Focal length: 1.257 mm

F number: F2.4

Lens construction: 7 groups 8 elements

Focus: Fix focus

Field of view: Max. 235 degree

Focusing range: 30 cm — ∞



Anti-Handshake: Electronic Image Stabilization (EIS)



Number of recording pixels

Still image:

360° Spherical/VR Mode (Lens A & B) 27MP: (2:1) 7360x3680, 15MP: (2:1) 5520x2760; Dual Dome (Lens A & B) (2:1)27MP: 7360x3680, (2:1) 15MP: 5520x2760

197° 4K Ultra wide mode (Lens A) (16:9) 8MP: 3840x2160, (4:3) 9MP: 3526x2644; 235° Dome Mode (Lens B) (1:1) 13MP: 3680x3680

Movie:

360° Spherical/VR Mode (Lens A & B) (2:1) 3840×1920/24fps, (2:1) 3840×1920/15fps, (2:1) 1920×960/30fps 197° 4K Ultra wide mode (Lens A) (16:9) 3840x2160/30fps, (16:9) 1920x1080/60fps (Ultra/Mid/Narrow FOV), (16:9)1280x720/60fps 235° Dome mode (Lens B) (1:1) 2880x2880/24fps, (1:1) 1920×1920/30fps

High speed movie: 360° Spherical/VR Mode (Lens A & B) (2:1) 1280×640/120fps; 197° 4K Ultra wide mode (Lens A) (16:9) 1280x720/120fps



Still image: Exif 2.3 (JPEG)

Movie: MP4 [Image: H.264; Audio: AAC [Stereo]

Camera modes: VR Mode (Lens A and Lens B), Round mode (Lens B), Front mode (Lens A)

Shooting modes: Photo, Burst photo, Time lapse photo, Movie, Time lapse movie, High speed movie

Splashproof: Equivalent to JIS/IEC IPX5 (Body)

Shockproof: Up to 2m (With protective lens cover)

Dustproof: Equivalent to JIS/IEC (IP6X)

Freezeproof: - 10°C

Status LCD: 1.0 inch TN LCD (with backlight)

Level gauge: 3-axis

ISO Sensitivity: Auto (100-600) (Movie), Auto (100-800) (Photo)

Exposure metering method: Artificial intelligence AE (AIAE)

Exposure control method: Program AE

Burst mode: Approx. 5fps (Full resolution)

White balance control: Auto (AWB), Daylight, Cloudy, Fluorescent, Incandescent, Underwater

Recording media: Micro SD / Micro SDHC / Micro SDXC Card (Up to 256GB Support)

Language support: English

Jacks: USB 2.0 (Micro 5 pin USB), HDMI (Type D) Stereo microphone input (Diameter of 2.5mm)

Wi-Fi: Yes (802.11 b/g/n)

NFC: Yes

Bluetooth: Yes (BLE4.1)

Remote control: Remote Control-D, Remote Control-C (optional)

Power supply: Rechargeable Li-Ion battery (LB-080), 3.6V 1250mAh, In-camera charging

Shooting capability: Approx. 150 Shots (Based on CIPA Standards) (Wi-Fi On) Battery performance: Approx. 80 min for Video (at 4K/15fps) (Wi-Fi On)

Operation environment: Temperature: -10 – 40°C, Humidity: 0 – 90%

Dimensions (WxHxD): Approx. 55.0 x 55.0 x 67.6 (Based on CIPA Standards)

Weight: Approx. 130 g (Body only), 156 g (With battery and Micro SD card)

Compatible devices: iOS device (Version 11.0 and up) / Android device (Version 6.0 and up), iPad mini 1/iPad 4/iPad Air 1/iPhone 5s and below not supported.

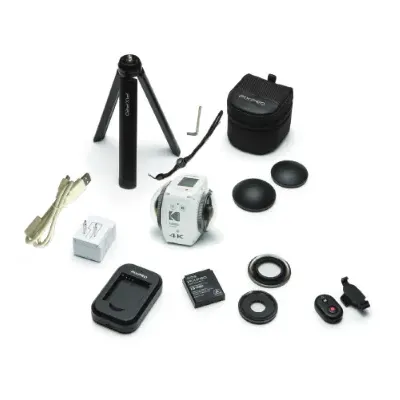

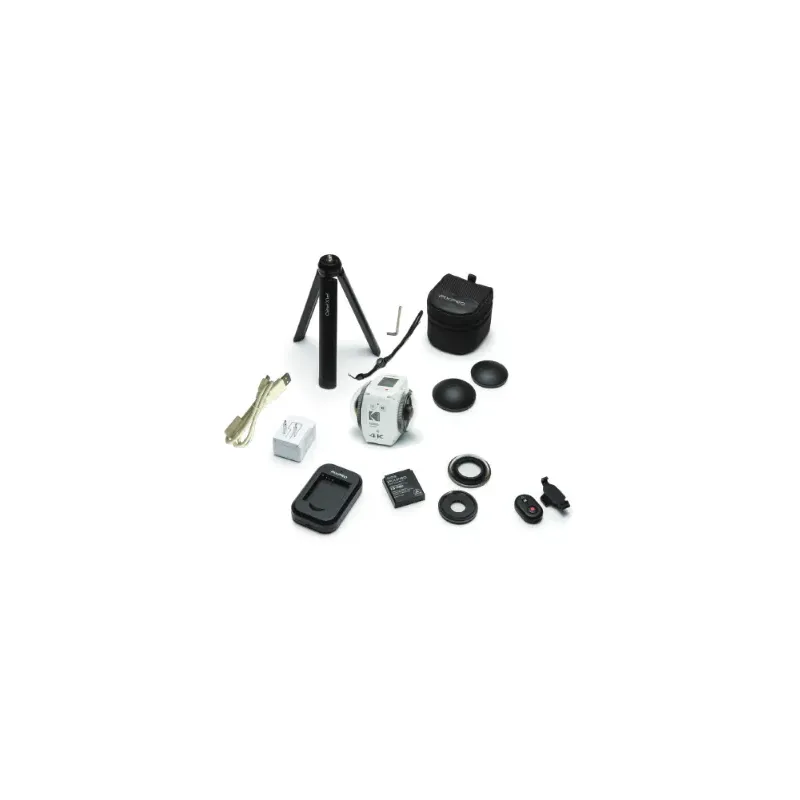

Contents of the set:

Camera body

+ Lens cover-B (For 155 degree lens)

+ Lens cover-C (for 235 degree lens)

+ Protective cover-B (For 155 degree lens)

+ Protective cover-C (For 235 degree lens)

Small 3-leg stand-B

Battery charger

USB cable

AC adapter

Battery

Carrying case

Cleaning cloth

Quick start guide

Service card

Online company store card

Warranty card

Remote control-D

Remote control mount-B

Team 360 sticker
